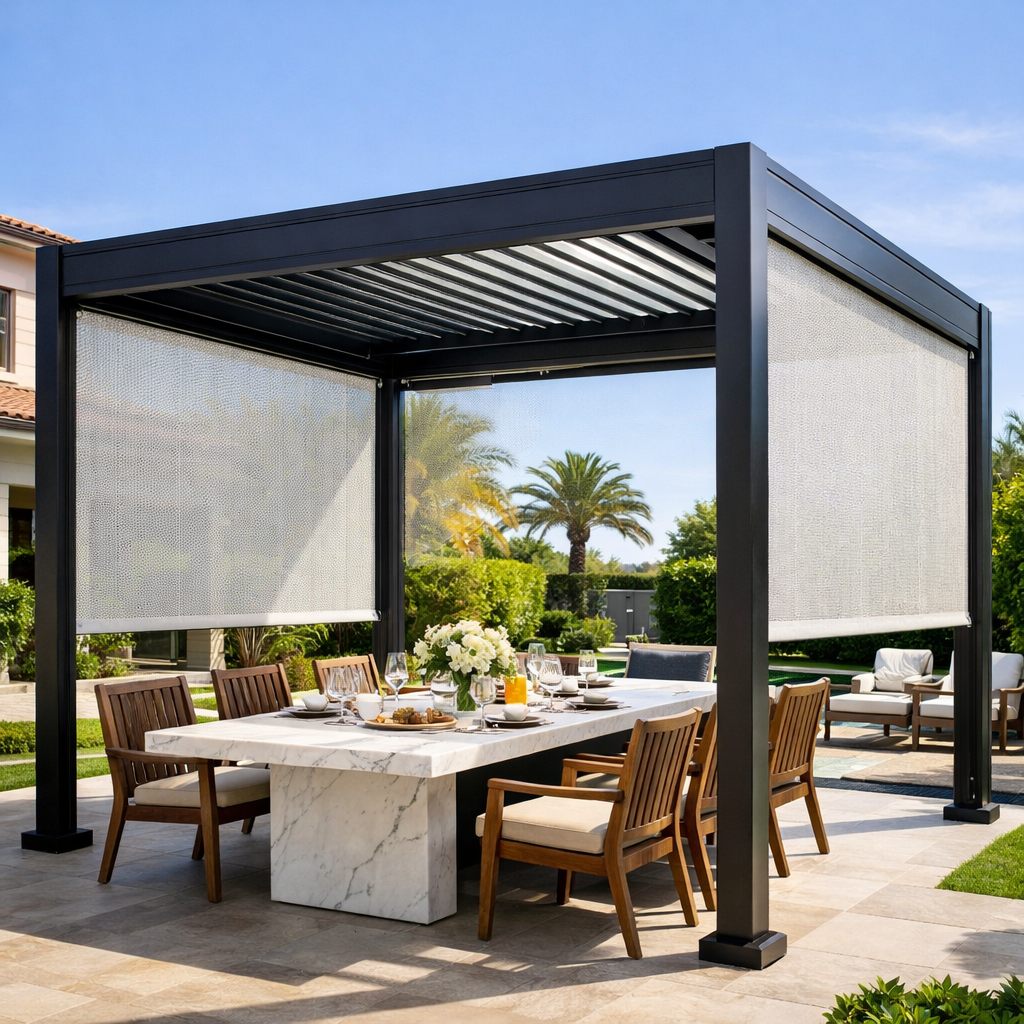

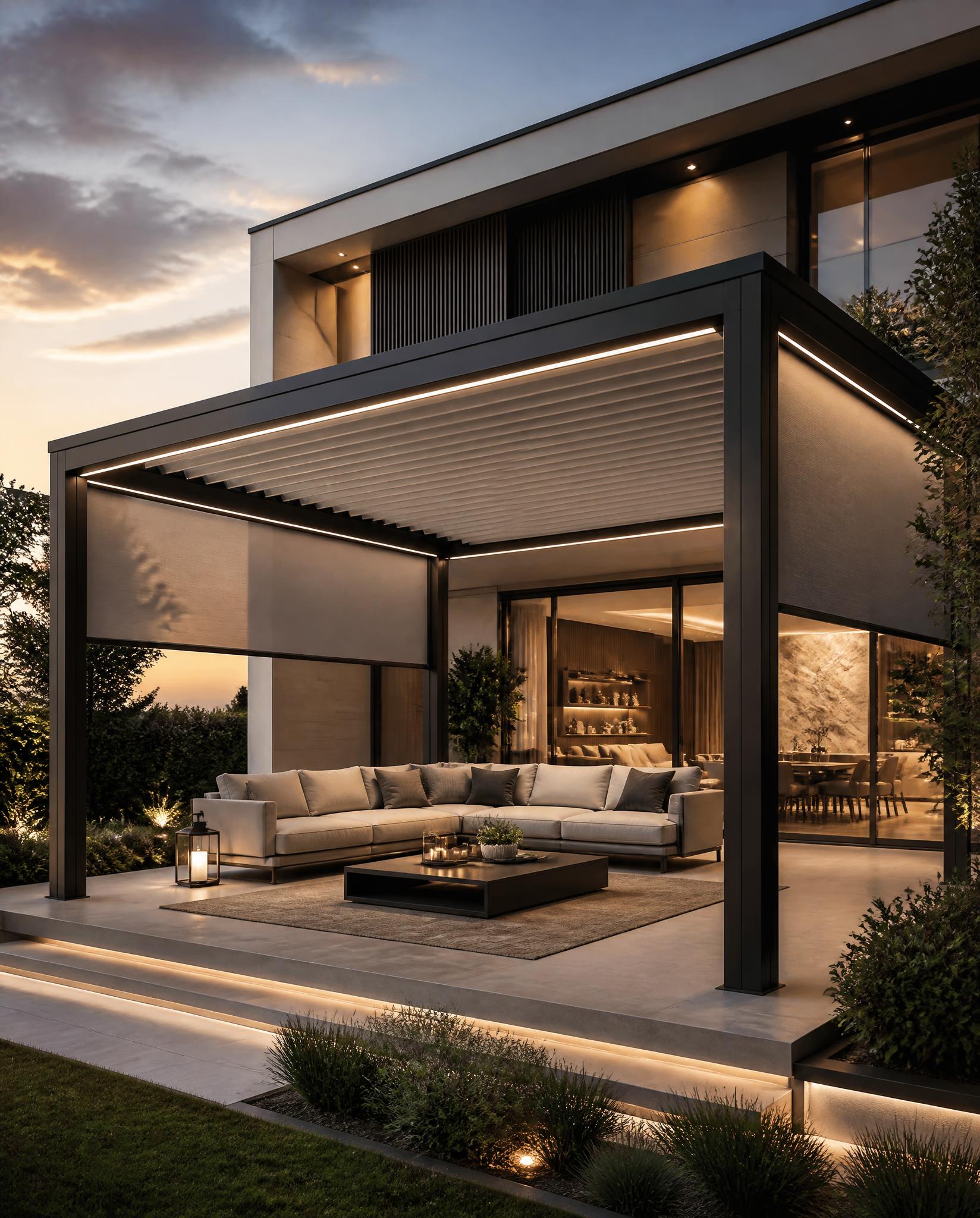

Transform your outdoor living experience with the Crown A Rotating Pergola, featuring an intelligent automated louver roof system designed for ultimate weather protection and comfort. Built with a leak-free 100% rust and rainproof roof, high-strength aluminum structure, and integrated electrical channels, it withstands winds up to 120 km/h and heavy rainfall. Complete with smart motor control, integrated LED lighting, and optional ceiling fans or zipper screens, it creates the ideal open-air sanctuary for residential and commercial spaces.
Product Type & Structure:
• Product Name: Crown A Rotating Pergola
• Frame System: Four columns (up to 4 x 6 meters) or six columns (up to 12 x 4 meters)
• Installation Options: Ground-supposed, bilateral column type, unilateral column, wall-mounted, card wall
Technical Parameters & Performance:
• Maximum Single Frame Size: Louver direction 4000 mm $\times$ pivot direction 6000 mm, height 2800 mm
• Wind Resistance: Can withstand winds up to 120 km/h
• Rain Intensity Resistance: Handles 0.04 to 0.05 l/sec/m² continuous rainfall intensity
• Snow Resistance: Can bear snowfall of 110 dry g/m²
Motor & Control System:
• Drive System: Electric drive and manual drive options
• Motor Specifications: Single motor drive with CE certificate, over 10,000 life tests, high thrust output, 1500N motor torque
• Smart Control: Intelligent motor control compatible with computers, tablets, and smartphones via remote control and control panel
Features & Accessories:
• Roof System: Leak-free louver system (100% rust and rainproof)

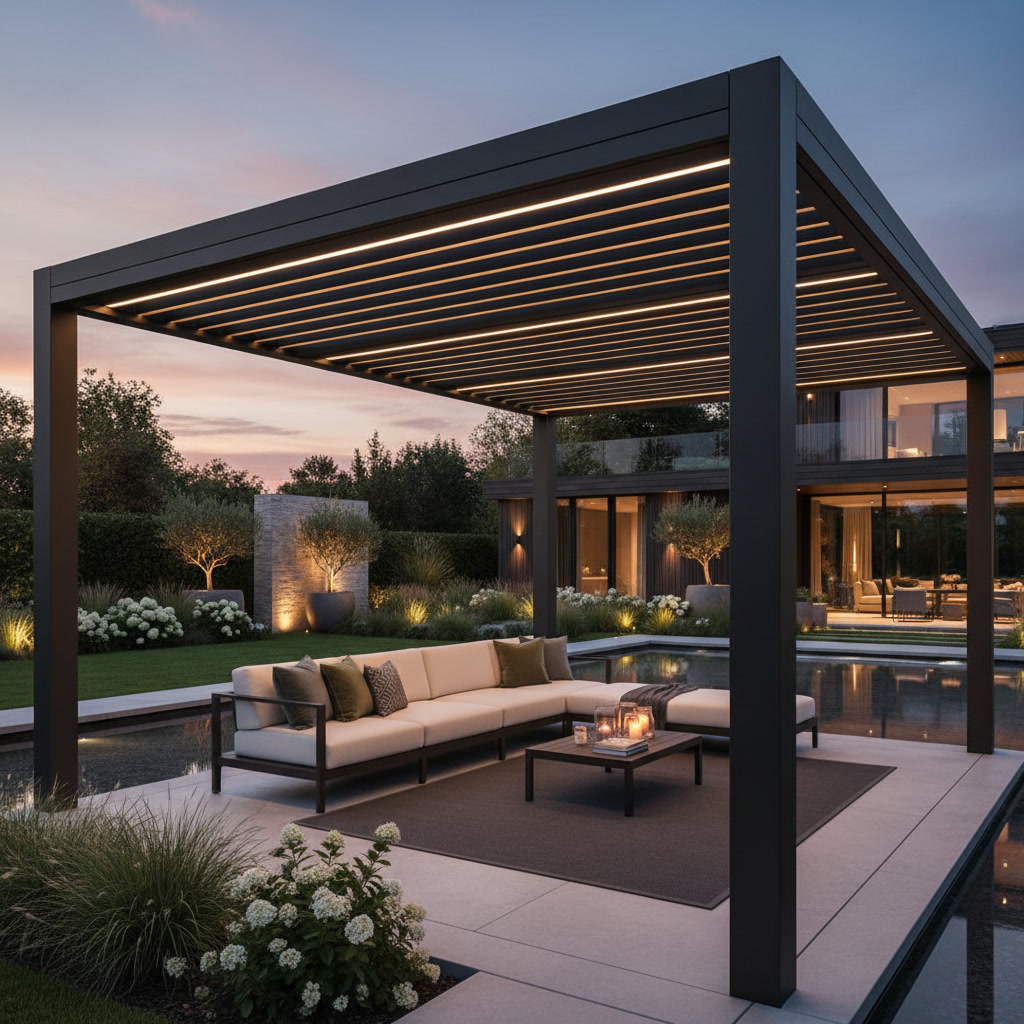

• Integrated Lighting: Dedicated electrical channel with integrated LED lighting
• Optional Add-ons: Electric ceiling fan lamp (48-inch, 36W LED lens) and protective zipper privacy screens
